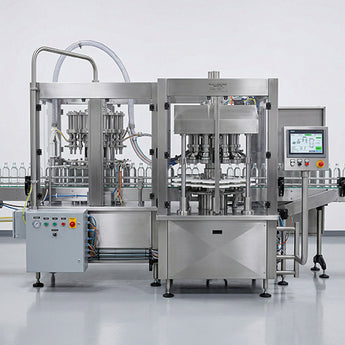

Lid Pluggers CLPS-G Continuous Lid Plugging System – Gluer

This system features a rotary lid plugging system with a glue applicator. A servo in-feed timing screw is utilized to transfer the container from the glue drum roller assembly into the star-wheel and guide assembly of the CLPS-G lidder. The glue roll drum features an external hot oil recirculating system and hot-melt glue reservoir.

The container travels through a dual-timing screw feed system to tilt the container forwards as it spins in the pocket of the timing screw. A fine bead of glue is applied to the inside diameter of the canister as it travels underneath the glue drum roller assembly.

A cap feeding system is integrated with the CLPS-G to provide a continuous flow of caps to the lidder to sustain the required throughput.

Specifications

• Stainless steel shafting, sheet (#3 finish) and structural tubing
• 4 1/2″ × 15′ table-top conveyor
• Stainless steel Imperial hardware
• Clear anodized aluminum
• Black oxide chain, pulleys and sprockets
• Dodge Tigear gear boxes and bearings
• SMC Pneumatics
• Clear polycarbonate guarding
• Plastic articulating foot pads
• Height adjustment kit with digital readout indicator
• THK linear guides
• White virgin Teflon timing screws
• Hand wheel and indicator for height adjustments (3.5″–9.5″ range)

Available Options

• Rotary cap feeder
• Conveyors (table-top, air, etc.)
• Coupon / leaflet inserters
• Stainless steel (non-wash-down) construction
• Elevator cap sorter feeder
• Ethernet and communication modules
• Electrical and control system upgrade
• Digital height and diameter adjust packages
• All domestic and international voltages to meet UL and CE requirements
• Cap detection with reject (fiber optic sensors and/or vision technology)
