DEL PACKAGING MACHINERY

Denester | SD-VC

$0.00 Sold out

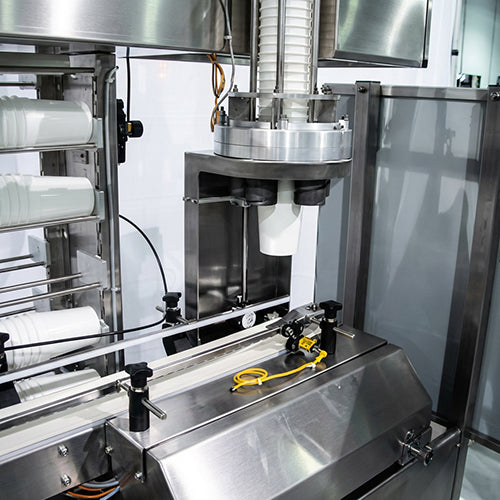

The Single Denester with Vacuum Conveyor (SD-VC) separates caps and containers.  Caps are loaded into the denester head guide rods by hand, or using an RCL or VCL loader.  A set of denesting screws at the bottom of the denester progressively separate the caps and containers and releases them onto a belted conveyor where a vacuum suction pulls the cap or container to the conveyor.  The product is then transferred to the customer’s conveyor via side transfer.

Applications

  • Metal, plastic, or composite containers and lids
  • Round, square, or rectangle products
  • 2" – 6" diameter containers
  • 2" – 12" height containers

Specifications

  • Up to 500 CPM
  • AB PLC and VFDs
  • 5-point contact dispensing head
  • Vacuum conveyor for constant container control
  • Integrated line controls
  • Stainless steel (non-wash down) construction

Available Options

  • Wash down construction
  • 220, 400, or 460 VAC
  • Optional large container dispenser available for large tubs (up to 5 gallons)
  • Dual lane option available
  • Standalone or integrated with our RCL or VCL loader
