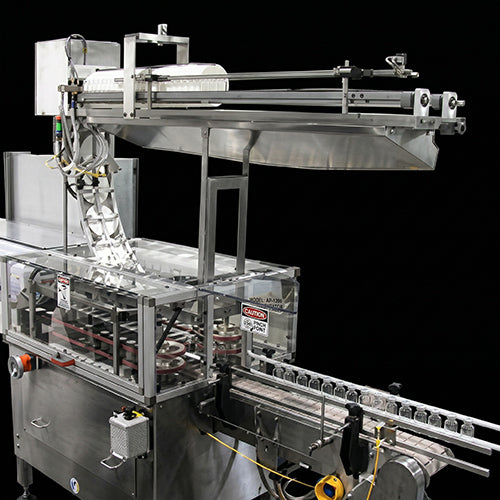

Overcapper SASRC Sanitary Adjustable Side Belt, Capper

This is a side-belt overcapper designed to apply an overcap to a straight wall rigid container. Containers are fed at random through the center of the overcapper via a tabletop chain conveyor with a maximum cross-section of 6″ x 6″. As the container travels through the center of the overcapper, the leading edge or bead of the canister pulls the overcap from a chute and the cap is progressively applied onto the container by a series of compression rollers.

Specifications

• Up to 600 CPM (containers per minute)
• Shown with spinning rod cap feeder head
• Manual container diameter adjustment
• Sanitary wash-down construction
• 460 Volt / 60 Hertz / 3 Phase NEMA 4X controls

Available Options

• Digital height adjustment packages
• Automatic cap loading system
• Rotary cap feeder
• Stainless steel (non-wash-down) construction
• Conveyors (table-top, air, etc.)
• Coupon / leaflet inserters
• Electrical and control system upgrade
• Spinning rod head storage cart with wench
• Ethernet and communication modules
• All domestic and international voltages to meet UL and CE requirements
• Cap detection with reject (fiber optic sensors and/or vision technology)
